General Information
LZ Type: Hospital
Coordinates:
(All the same)
N 37° 30' 53" x W 77° 31' 33"
37° 30.88' x -77° 31.56'
37.51461100 x -77.52597200
Picture(s):
FAA Nav ID: 6VA3
Address: 7101 Jahnke Rd
http://hcavirginia.com/locations/chippenham-hospital/
Richmond, VA 23225
Phone: 804-483-4199
Comments: Contact Chippenham Communications on Med 7 as Primary and HEAR (155.340) as a Secondary. .
Group Specific Info
Group Nav ID:
Comments:
Hospital Information
Capabilities
Trauma Level: 1 Pediatrics: Y
Cardiac: Y Burn Center: N
Stroke: Y HR OB/Gyn: Y
Security
Security Phone: 804-483-4199
Security Contact: Chippenham Communications
Radio Frequency: Med 7/ HEAR
Emergency Department
ED Contact: Chippenham Communications
ED Phone: 804-483-4199
Record Information
Last Update: Oct 14, 2019 5:07pm Kenneth Smith
Added By: Oct 20, 2008 8:57am James Gossage
Weather Stations
Loading from AviationWeather.gov
LZ Information

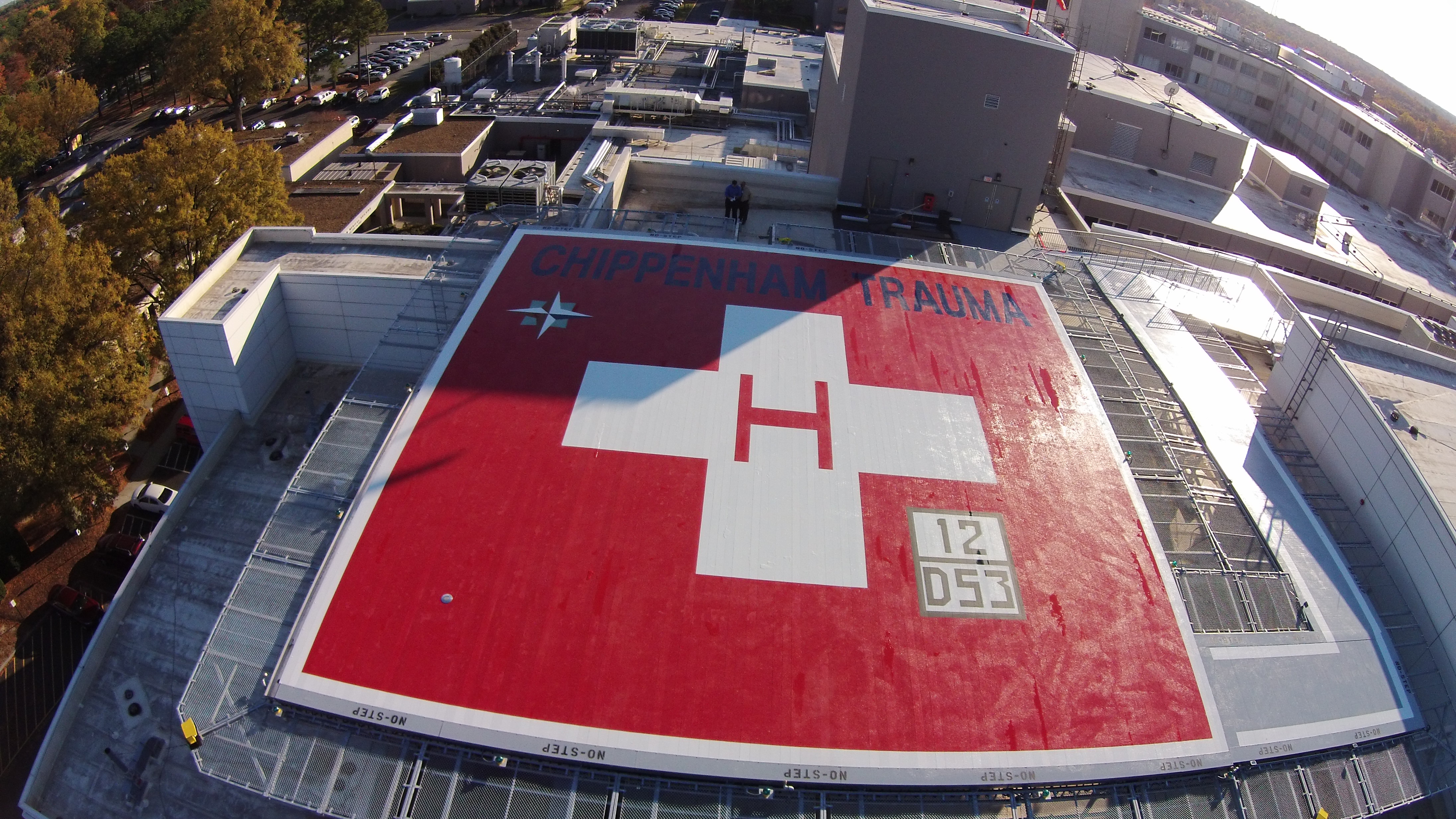

Location/Description: Primary - rooftop on Levinson Heart Hospital building.
Hazards: roof top structures
Approach/Departure: roof top structures
AWOS:
Nearest Fuel
Name Dist Bearing IFR
Richmond International Airport 9.7 117° ESE Y
AWOS/ASOS: 804-236-1091
Nearest Specialty Centers
Name Dist Bearing Trauma Burn Ped Neuro
Johnston Willis Hospital (HCA) 3.3 117° ESE 3 N N Y
VCU Medical Center 4.8 117° ESE 1 Y Y Y
Mary Washington Hospital 47.9 117° ESE 2 N N Y
Comm Chan: VHF FM1 16 (CHIPPENHAM: 155.34, 155.34
Dimensions: 50' x 50'
Surface: Aluminum and Steel
Elevation: 315 feet
Jet A Fuel: No
Nav Freq:
Max Weight: 12,000 lbs.
Windsock: Yes
Lighting: YES
Instrument App: No
Alternate LZ Information
Heliport ID: Secondary - Helipad
Coordinates: N 37° 30' 53" x W 77° 31' 39"
37° 30.89' x -77° 31.64'
37.51475100 x -77.52739200
Location/Description: "Front Pad/Old Pad" Chippenham Parkway side of hospital.
Richmond Police and Chippenham Security will need to stop traffic during a landing on the Ground Pad
